Double-station Motor Winding Machine for Electric Motor AC / DC Production SMT-SR350
Technical Parameters
| Model | SMT-SR350 |
| Wire diameter | Φ0.3mm~Φ1.2mm |
| Winding form diameter | ≤Φ380mm |
| Winding head | 2pcs |
| Transfer distance | ≤250mm |
| Unload winding speed | ≤1500r/min |
| Air pressure | ≥0.4MPa |
| Power supply | 220V/50/60Hz 1.5Kw |
| Weight | ≈900Kg |
| Dimension | (L)2000×(W)1450×(H)1500mm |
Brief Instruction of Machine
Machine "Double-station Motor Winding Machine for Electric Motor AC / DC Production" is used for winding electric wires to the winding tools automatically and orderly. It's special for double separate work stations.
Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.
Equipped with double winding stations and winding heads, which can wind two group coils at one time or separately automatically. Operator need to unload coils manually. Two stations are working separately so that it can save time of loading and unloading because one is winding and the other one can be unloaded.
1.Motor coil winding machine application
The semi automatic motor coil winding machine is suitable for fan motor, table fan motor ,washing machine motor and various small motors, square, round and multi-layer motor coil.
As an excellent manufacturer and supplier of motor manufacturing machines, Nide Mechanical can provide professional motor manufacturing equipment and motor manufacturing technology consulting services.
2. Motor coil winding machine technical data:
| Product name: | semi automatic motor coil winding machine for fan motor and washing machine motor |
| Machine color: | RAL7035(or as per customer's requirement) |
| Diameter of Wire: | 0.5-1.5mm; |
| Swing diameter: | 500mm; |
| Winding former Diameter: | Max.350mm |
| Turn No. accuracy: | 0.2%; |
| Wire feeding head: | 1-4pc |
| Transfer distance: | 170-300mm |
| Array wire number: | 1-12; |
| Working speed(no-load): | 0-800(according to different diameter wire, the speed is stepless adjustable,no obvious vibration or noise;) |
| Max rotation speed: | 1600R.P.M |
| Machine productivity: | around 1000 pcs/8 hours |
| Power / Input: | 220V/50Hz |
| Air pressure: | 0.5-0.8MPa |
| Power: | 0.75KW |
| Main motor power: | 2.2KW-6P; |
| Frequency converter: | 2.2KW; |
| Effective length of the square spindle: | 520mm.; |
| Dimension of square spindle: | 20*20*625mm; |
| Machine Dimension: | 1550mm × 1250mm × 1450mm |
| Machine Weight: | ≈ 850kg |
3. Motor coil winding machine characteristics
Automatic slotting, automatic tapping, the operator only needs to put in and pick up the winding mold, and takes the wound coils out of the mold .
with two winding square axle spindle;
low vibration and low noise ;
No broken or enamel damage for the wire;
Main electric parts and bearing adapts high quality motor parts;
The turn No., wire dia., wire arraying width, transfer distance, winding direction and wire arraying direction are all settable on the controller;
Wire array: stepping motor + screw rod;
Total 999 model parameter can be set;
Machine will automatically stop once wire coil winding is finished;

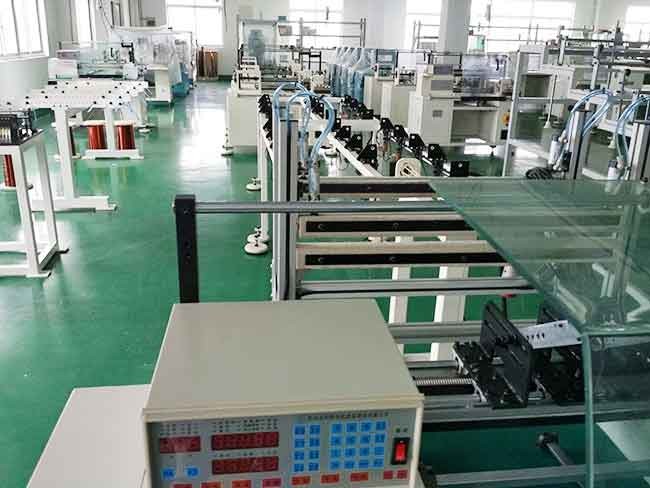

4. Motor coil winding machine picture show:
(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a manufacturer in Suzhou city, China, which is specialized in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
